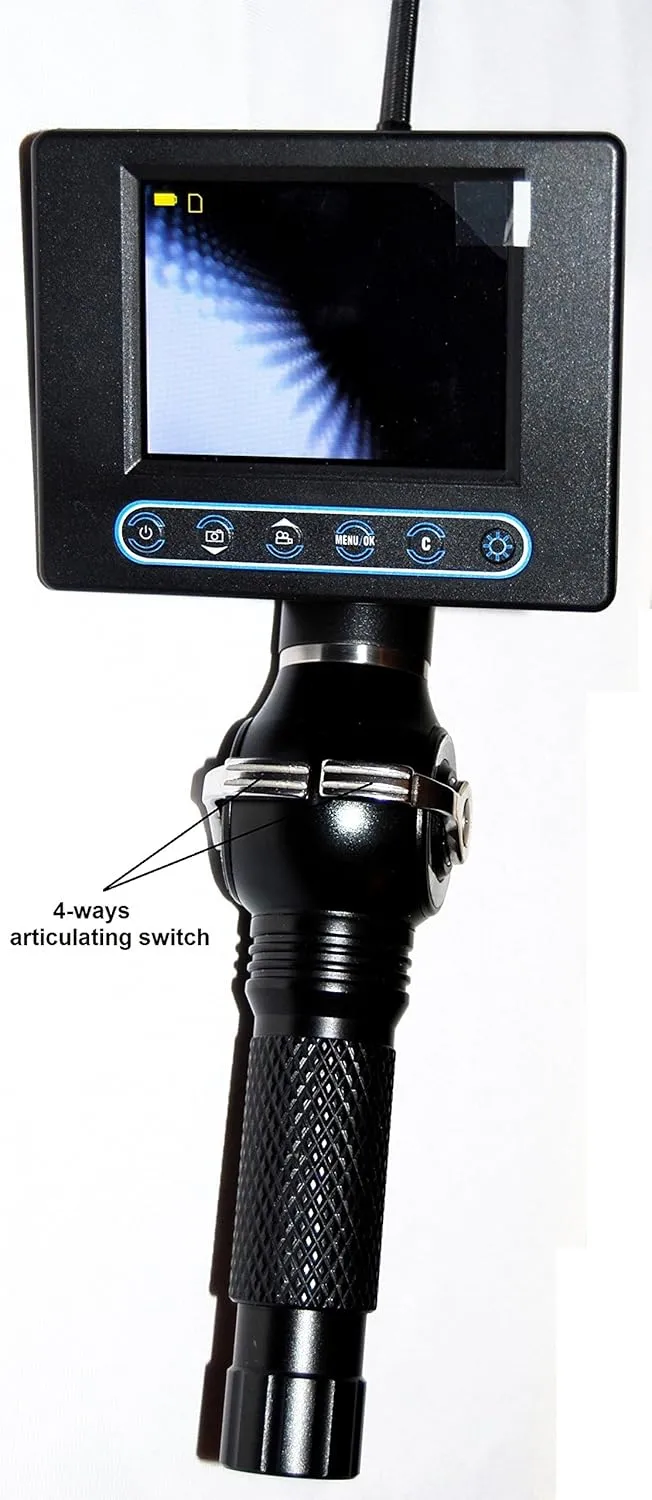

- One-handed articulation function allows user to turn the probe tip to inspect targets located at sides or at an angle while it is inside a tight space.
- 4-way articulation videoscope camera: up / down / left / right offers a panoramic view of the area being inspected.
- Takes still photos and record videos in real time, micro SD card included allows user to save pictures and videos and output later.
- Durable material and construction (Insertion Tube covering is tungsten mesh Braided) all pass a 60,000 use cycle test.
- 3.9mm flexible camera tube is water, gas, diesel and oil resistant. AV output for viewing images and video directly on a monitor.
This device, YB-4-3930, allows you to perform detailed visual inspection in hard-to-reach areas, even in total darkness or under water. Utilize both articulation knobs to control the camera up, down, left and right to get a complete video or picture for your inspection. With 3.5" full color LCD screen and four built-in LEDs for illumination, this camera allows you to capture snapshots or videos with rich color throughout a dynamic range of 1cm to infinity. The captured images and videos are saved in the SD card, and the data can be transferred to a PC. The camera head and cable is water, gas, diesel and oil resistant. This unit is ideal for use in aircraft maintenance, machinery and production line inspection, petro-chemical and power plant inspection, general MRO and facility management where close documented small space inspections are essential.
Camera Sensor: 1/13” VGA CMOS.
Focal Range: 1cm to infinite. Fixed focus.
Camera Field of View (FOV): 80°.
Minimum Bending Radius: 45mm.
Camera Articulation: 4-way, up / down / left / right
Camera Rotation: 360°.
Illumination: High-power 4 LED lights with fiber light guide and adjustable brightness.
Monitor: 3.5” full color LCD display (Image resolution: 640 x 480, Format: JPG);
Video resolution: 640 x 480, Format: AVI;
Video frame rate: 30 frames/second.
Micro SD card: support Micro SD card up to 16GB
TV Cable Length: Approx. 1.5m.
Rechargeable Lithium-ion battery with up to two hours of battery life.
Dimension: Monitor Size: 8.0”x3.5”x5.0”; Articulation probe length: 113cm (3.7ft); Camera probe diameter: 6mm (0.24in). Weight: 12oz.
Package Includes: 4-way articulating 3.9mm diameter probe with 3m long cable, 3.5” monitor, 2GB micro SD card, USB cable (borescope to computer), AC charger (110-240V), composite video cable, user’s manual, hard plastic carrying case. Manufacturer’s Warranty: 1 year.
