- Quick-Change Design: Easily install and replace tapping chucks with a simple pull-and-click mechanism, saving time during CNC operations.
- Overload Protection: Torsion-type chuck prevents tap breakage, ensuring smooth and durable performance for M3 taps.
- High-Speed Steel Material: Built for precision and longevity, ideal for professional CNC machining and metalworking.
- Secure Clamping: Japanese-standard GT12JISM3 system offers strong grip and stability for accurate tapping.
- Versatile Compatibility: Works with drill chuck extensions, suitable for various CNC and manual drilling applications.
Specification:

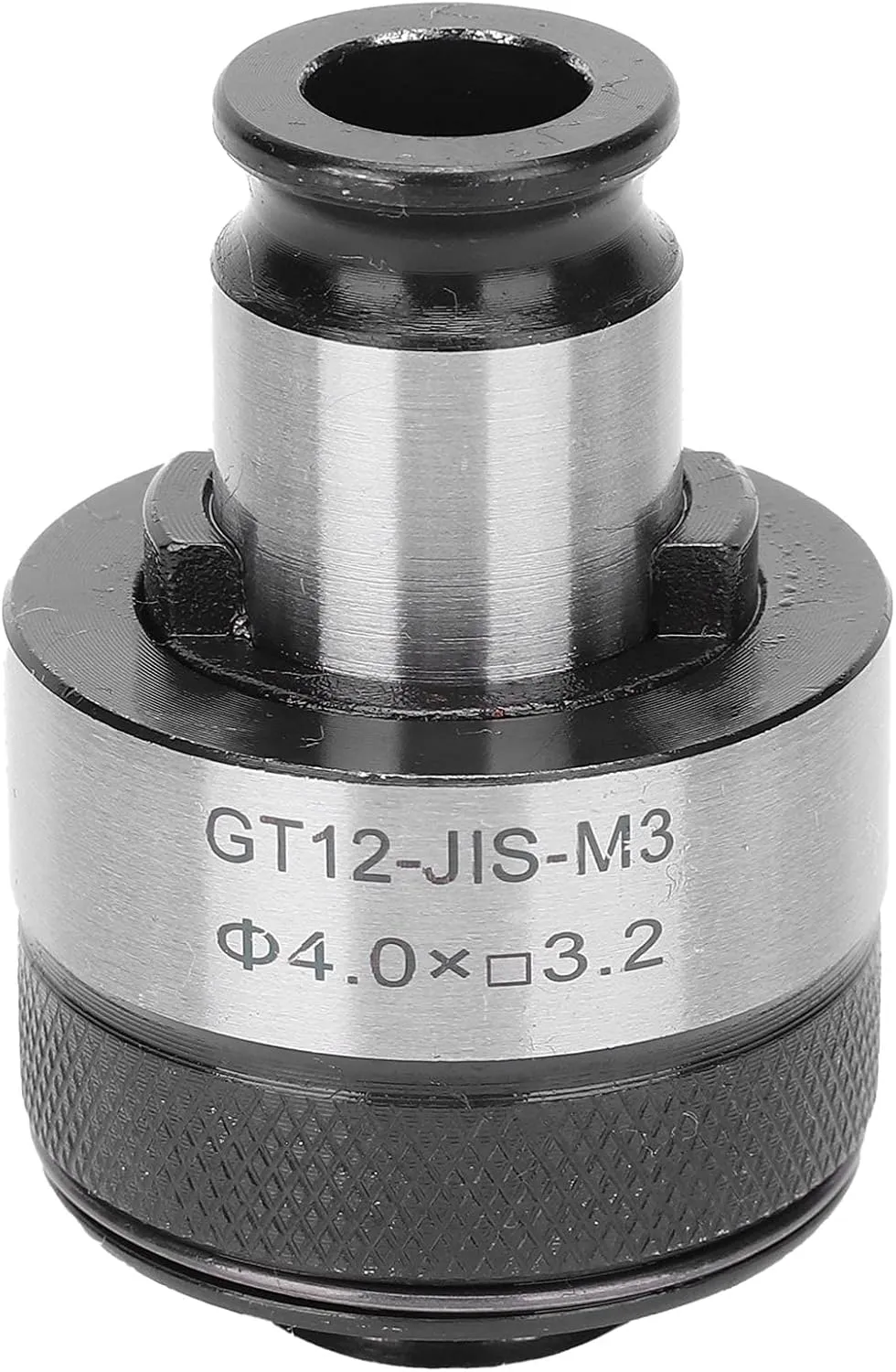

Item Type: Tapping Collet
Material: High speed steel
Specification: M3
Shank Diameter x Square Hole: Approx. 4.0 x 3.2mm / 0.2 x 0.1in
Product Category: CNC Tool
System: Japanese standard
How to Use:
1. Press the knurled position of the handle body with the thumb of your left hand and pull it in the direction of the arrow
2. The handle body is aligned with the concave and convex keys of the chuck, install the chuck into the shank body
3. When disassembling the chuck, pinch the knurled key with your hand and pull the chuck back and it will be ejected automatically
Install Steps:
1. Thumbs press down the spring
2. Put the tap into the chuck hole and release your thumb
packing list:
1 x Tapping Collet
