- Bundle includes (1) 7" TCP07 Touch panel controller, and (1) IFBOX legacy controller interface box
- 7" stand-alone interface
- PoE powered for flexible installation and fast deployment
- Control up to 8 AV devices in your environment
- Seamlessly controlled by the TPC07 in your automated meeting space

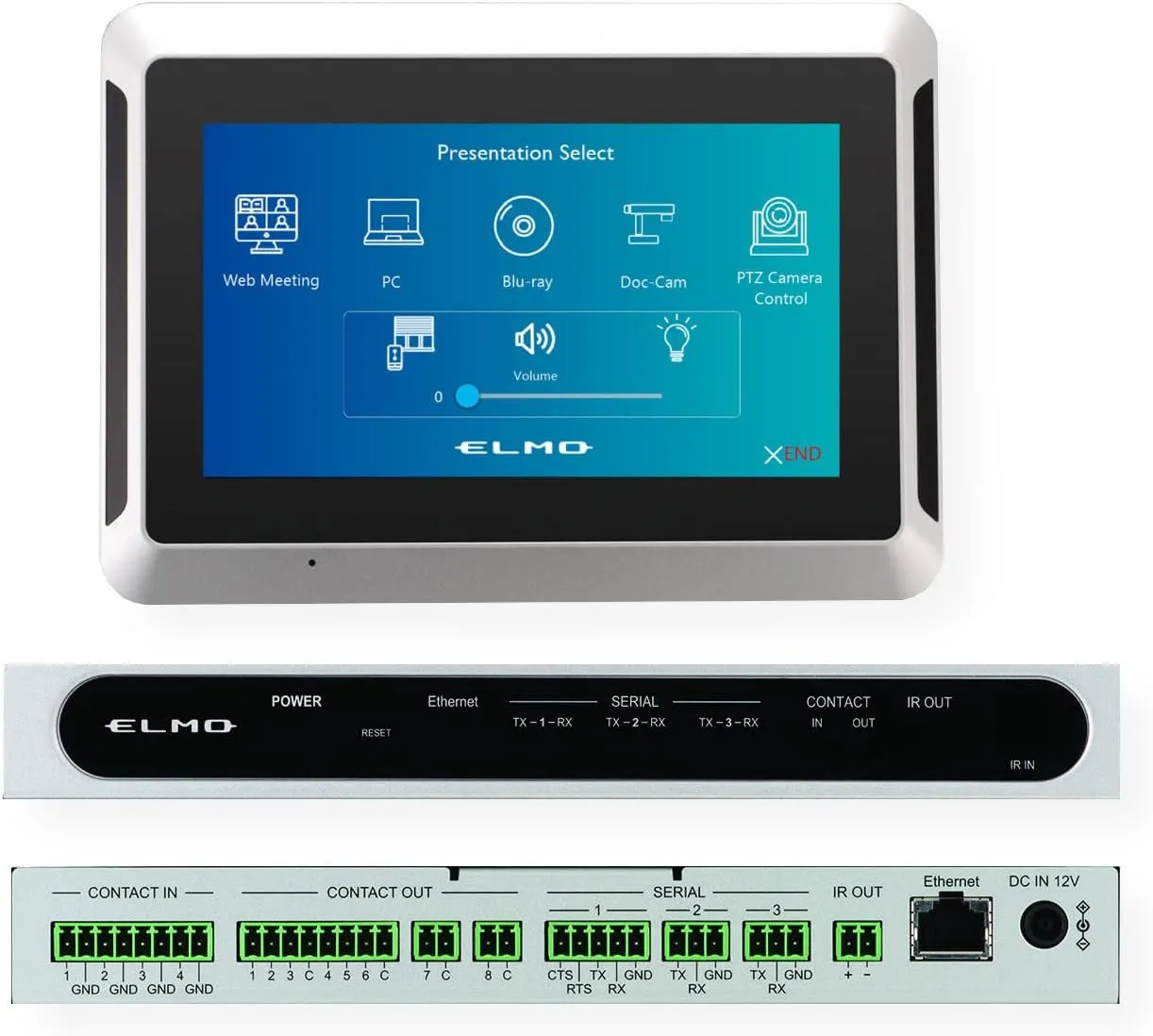

Elmo 3461-1 CVAS Bundle, Includes: (1) 7" TCP07 Touch Panel Controller, and (1) IFBOX Legacy Controller
Key Features:
- Bundle includes (1) 7" TCP07 Touch panel controller, and (1) IFBOX legacy controller interface box
- 7" stand-alone interface
- PoE powered for flexible installation and fast deployment
- Control up to 8 AV devices in your environment
- Seamlessly controlled by the TPC07 in your automated meeting space
Specifications:
Touch Panel Controller Specs:
- Power Source: 5VDC, PoE
- Power Consumption: 8.5W
- Main Unit Control Port: Ethernet x1 RJ45 connector
- Interface: USB 2.0 Type A x1, SD Card Slot x1, Reset switch
- Touchscreen Size: 7 inches
- Resolution: 1024 x 600
- Angle of View: 160 vertical / 160 horizontal
- Outside Dimensions (WxDxH): 8.11 x 4.09 x 4.92 inches
- Overall Weight: 1.65 pounds
Legacy Controller Specs:
- Serial Port: RS-232C x3
- Power Source: 12VDC (supplied by adapter)
- Power Consumption: 9.6W
- Main Unit Control Port: Ethernet x 1 RJ45 connector
- Other ports: 3-pin port x2 RX, TX, GND; 5-pin port x 1 RX, TX, CTS, RTS, Ground; Relay contact output x 8; Non-voltage contact input x4; IR signal 2-pin port x1; Reset switch; Factory default reset switch
- Outside Dimensions (WxDxH): 8.19 x 5.2 x 1.06 inches
- Overall Weight: 1.5 pounds
