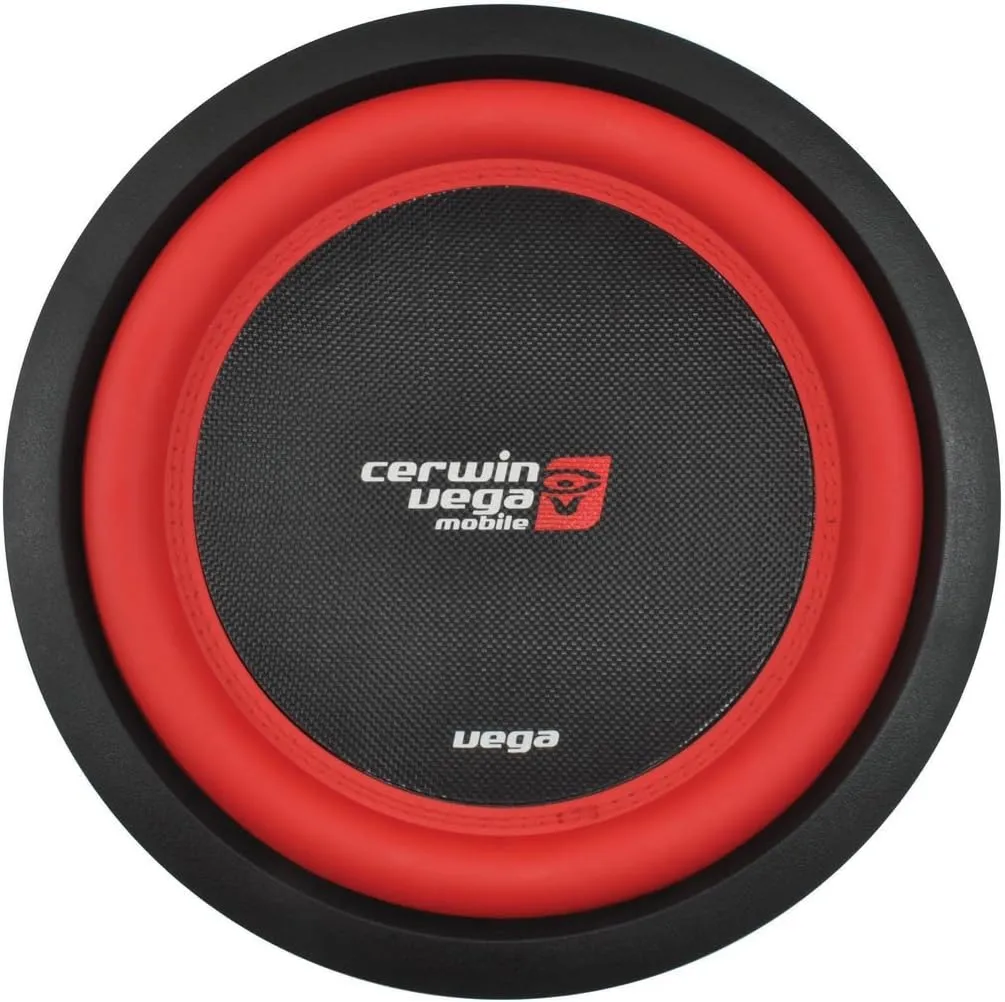

- High-performance subwoofers engineered for deep, powerful bass
- Dual voice coil configurations for flexible wiring options
- Durable construction with carbon fiber cones for longevity
- Optimized for 2Ω and 4Ω setups to match various audio systems
- Ideal for car audio enthusiasts seeking premium sound quality
Proprietary Stamped Cast Vega Basket Design Optimized High Power Single-Stacked Motor Structure Parabolic One Piece Stamped Carbon Fiber Polypropylene Cone Double Stitched Vega Red Santoprene Surround Proprietary Horizontal Mounted Spring Loaded Terminals High Power Integrated Impedance Selector Vega Concealed Mounting Gasket Total Diameter (A) 10.7 Inch 272 mm Mounting Diameter (B) 8.82 Inch 224 mm Screw Hole Diameter (C) 0.7 Inch 18 mm Mounting Depth (D) 5.43 Inch 138 mm Magnet Diameter (E) 5.63 Inch 143 mm THIELE/SMALL PARAMETERS SPL (dB) 85.5 Re (Ohms) [series] 4.0/4.0 Qms 6.1 Qes 0.66 Qts 0.602 Fs (Hz) 34.5 Vas (L) 28 Cms (mm/N) 0.37 Mms (g) 118 Sd (m2) 0.033 BL (T M) 15.3 Xmax (mm) 17 INTEGRATED IMPEDANCE SELECTOR To help installation we at Cerwin-Vega Mobile designed a simple but effective single terminal Dual Voice coil setup. Simply pull out the terminal and rotate it to the impedance desired. The impedance above the terminal is now the impedance of the driver, with only one set of speaker wires going to it. No complicated wiring anymore!!!
